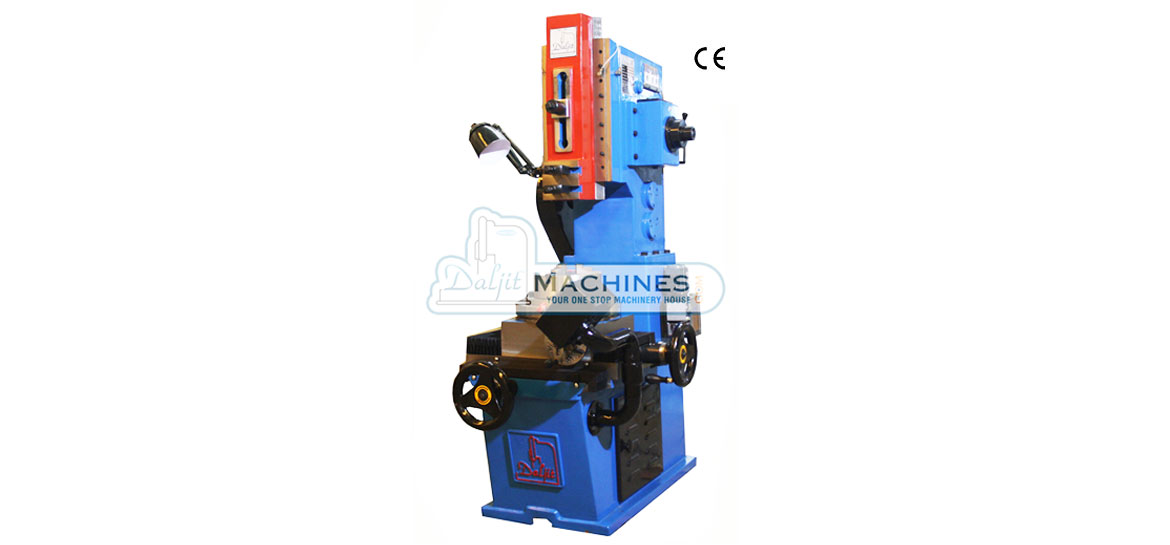

DS-10 To 12 Heavy Duty Series
Geared Head - Heavy Duty Slotting Machine
Price: On Request
The DS-10 to DS-12 Geared Head Heavy Duty Series Slotting Machine is a precision-built industrial machine designed for heavy-duty slotting, grooving, and keyway cutting applications. Engineered with a strong geared head mechanism and rigid machine structure, this model delivers powerful machining performance with high accuracy and reliability.
The machine is capable of handling slotting operations with a maximum stroke capacity of 300 mm, making it suitable for medium and heavy engineering applications. Equipped with a 380 mm rotary table and generous longitudinal and cross movements, the machine offers flexibility for machining larger and complex components with ease.
Built using high-grade seasoned castings and precision-engineered components, the DS-10 to DS-12 series ensures smooth, vibration-free operation and long service life. The geared head system provides efficient power transmission and better cutting torque, while precision-cut hardened gears ensure reliable and low-noise performance.
The machine features adjustable ram settings, efficient cutting speeds, and excellent throat depth for handling a wide range of industrial slotting requirements. Suitable for workshops, tool rooms, fabrication units, and manufacturing industries, the DS-10 to DS-12 Geared Head Heavy Duty Series Slotting Machine is designed for continuous heavy-duty operation with minimal maintenance.
Machine Benefits
Features
- Heavy-duty geared head construction for powerful machining.
- Maximum stroke capacity of 300 mm.
- Large 380 mm rotary table for versatile applications.
- Longitudinal movement of 300 mm.
- Cross movement of 250 mm.
- Cutting speed of ram: 40–60 strokes per minute.
- Ram adjustment capacity up to 300 mm.
- Throat depth of 430 mm for larger workpieces.
- Distance from tool to main column: 380 mm.
- Smooth and vibration-free machining performance.
- Precision-cut and hardened gears for long operational life.
- High machining accuracy with low maintenance.
- Suitable for continuous industrial applications.
- 2 HP motor requirement for efficient operation.
Machine Data
Technical Specifications
| Model | DS-10-12 |
| Maximum Stroke | 300 mm |
| Rotary Table (A) | 380 mm |
| Longitudinal Movement (B) | 300 mm |
| Cross Movement (C) | 250 mm |
| Cutting Speed of Ram | 40-60 |
| Ram Adjustment (D) | 300 mm |
| Distance Between Table to End of Ram (E) | 430 mm |
| Distance from Tool to Main Column (F) | 380 mm |
| Main H.P. Required | 2 HP |
| Machine Dimensions (LXWXW)(MM) (H.D) | 1470X785X1775 |
| Machine Dimensions (LXWXH)(MM) (H.D.R.A.) | 1470X885X1775 |
DS-10-12
Machine Package
Standard Accessories & Electricals
- Main Motor And Starter.
- Oil lubrication pump (MANUAL)
- 8 inch thru chuck with plate
- Complete dividing head with rotary table
- One handle for stroke adjustment
- Vee-belts guards
- One railing set for electric motor.
Upgrades
Optional Accessories
- Panel board (Schneider Make)
- 4 sets Safety Bellows
- One set of Light
- 3 sets of Boring bar (8mm, 10mm , 12 mm)
- Automatic Lubrication System
